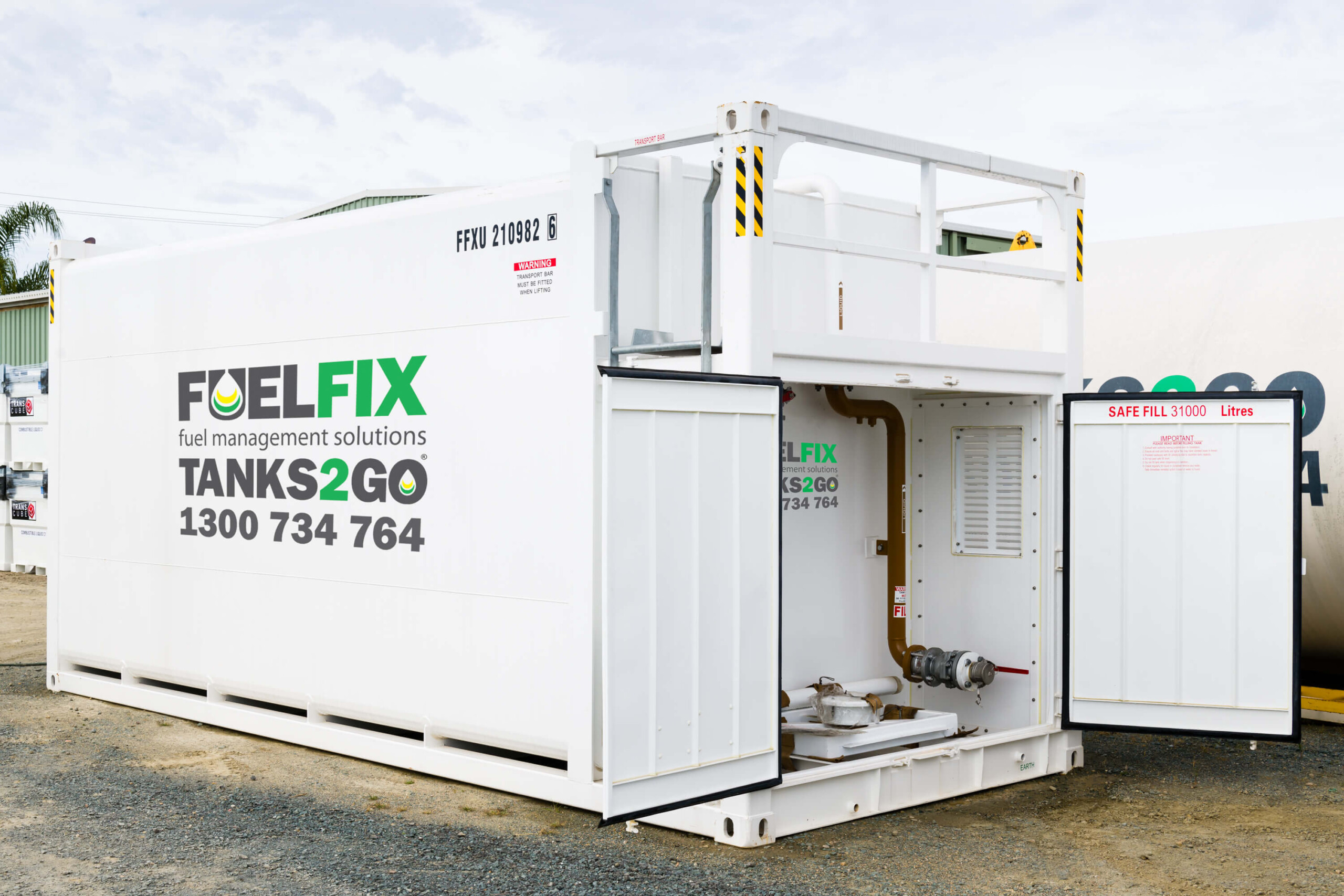

30,000L Self Bunded Fuel Tank

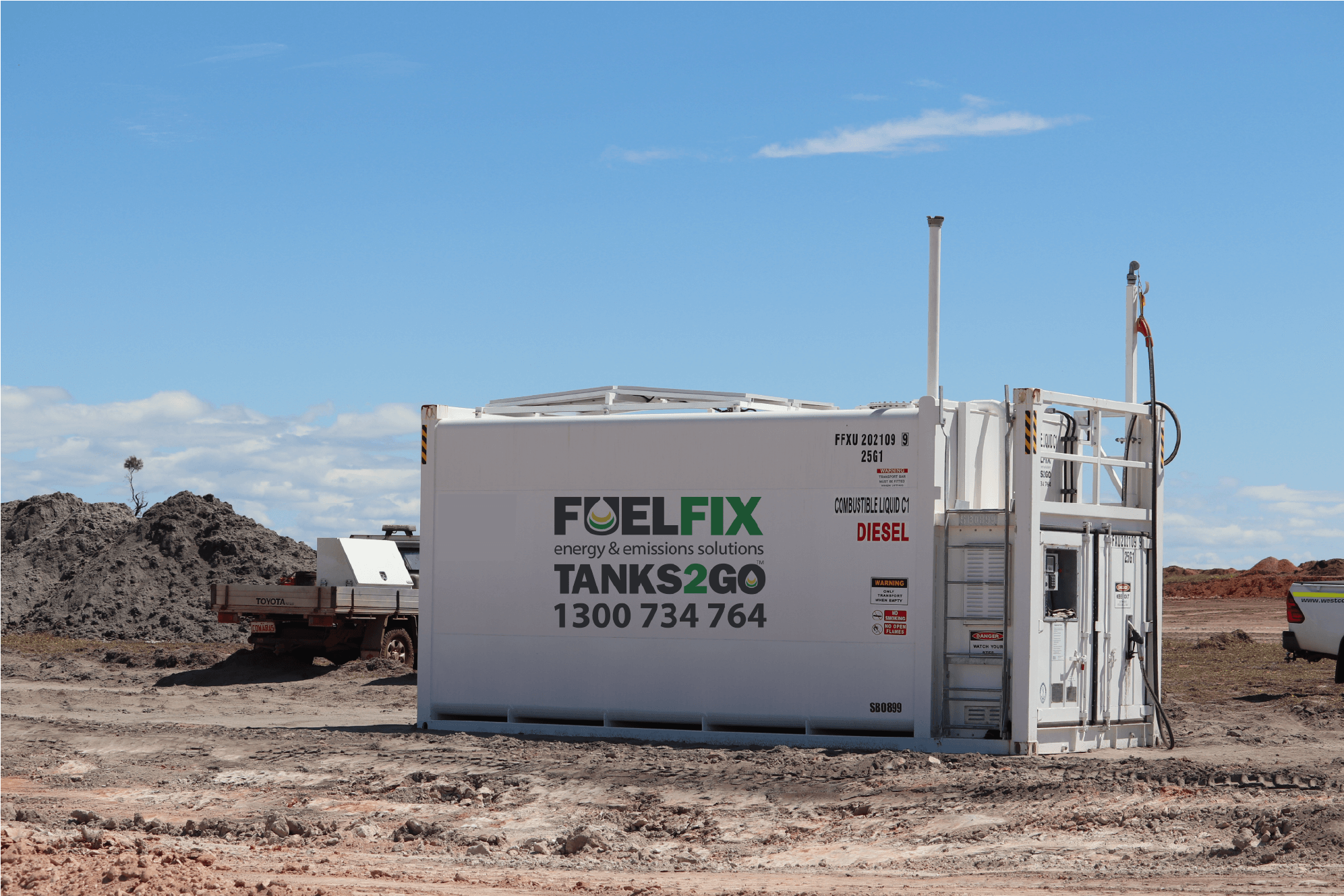

The Fuelfix Self-Bunded 30,000L tank is designed to maximize the volume of fuel stored on a 20ft footprint. This tank is ideal for transportation depots as well as mining and construction sites where on-site refuelling is required.
30,000L Self Bunded Fuel Tank
- 20 foot sea container footprint - easy to load, transport and unload with a side loader truck
- In-built ladder platform avoiding working at heights risks when commissioning and de-commissioning the fuel tank
- Front mounted security doors - fully lockable container doors to keep the equipment protected from harsh environment
- Fully customisable pump bay to suit customer's requirements with solar powered options available
- Solar-powered pumping package option available, capable of dispensing over 30,000 litres per day using solar energy, with an additional backup dispensing capacity of 20,000 litres from the battery at 240 litre per minute.
Product Features
- Movable: This tank is easily transported using sideloaders, removing the need for cranes, EWP’s and any related working at height risks when loading and unloading.
- Accessible: Permanent ladder and platform complete with kickboards in accordance with AS1657. For ease of inspection and access, ladder can be fitted to either side of the tank. Undertank visibility.
- Secure and Efficient: Overfill protection supplied with mechanical shut-off and alarm. Free-to-air vent weather cap. Tank floor has fall-to-front for water collection and tank-top evacuation point. Front mounted security doors with container lock handles.
- Environment-Friendly: Self-bunded double wall design and spill contained pump bay housing with removable ventilation panels. Anti-syphon valve prevents fuel loss and possible contamination should a pipe or hose fail.
- Solar-Powered Pumping Option: Roof mounted 3kW solar array coupled with a 10kwh battery on a 20ft footprint for a self-powered autonomous fuel storage system.
- Plug-and-Play: This easy to move and setup system is ideal for remote location such as mining and construction sites, requiring on-site refuelling.
Product Specification
32,400L
30,780L
Height
2,896 mm
Width
2,430 mm
Length
6,042 mm
Empty
6,950 kg
Full
32,990 kg
UL 142
ULCS601
AS1940
AS1657
AS1692
3" Male camlock coupling with dust cap fitted to tanker filling point
Wafer non-return fitted to filling line
3" fire safe ball valves
Container corner castings
Primary tank access manway
Calibrated fluid level dipstick and statutory signage
Interstitial space dip point
Finished in white marine grade polyurethane paint.
HV/LV dispensing package
Single or dual vehicle pump package (light to medium vehicles)
Lubricant dispensing package
Fuelfix fuel management system

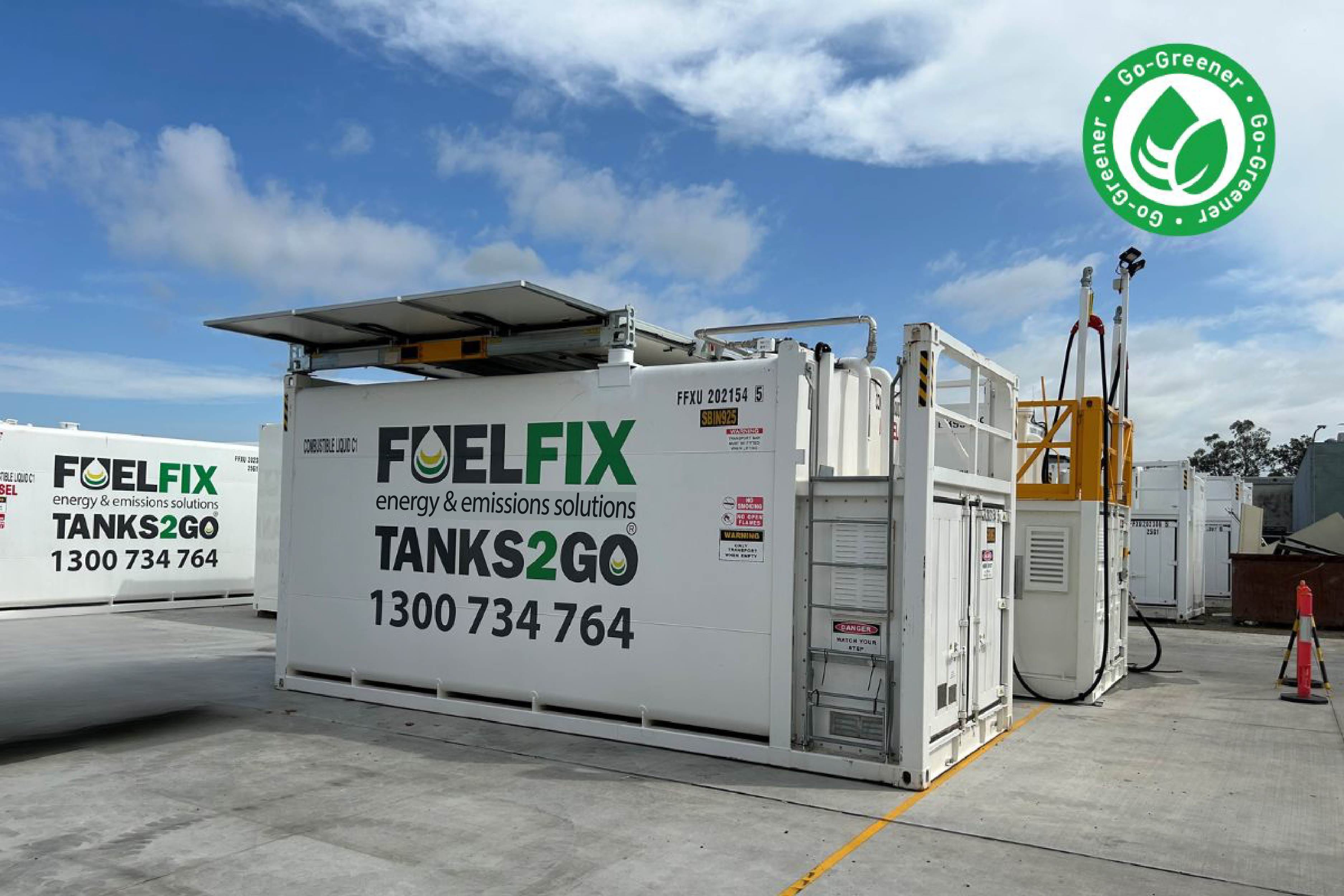

30,000L Solar-Powered Fuel Tank
Fuelfix Self-Bunded Solar 30,000L tank couples a 3kW solar array with 10kwh battery on a 20ft footprint. This tank is a self-powered autonomous fuel storage system on a single footprint requiring no external power source. This easy to move and setup system is ideal for remote location such as mining and construction sites, requiring on-site refuelling.
