70,000L Self Bunded Fuel Tank
The Fuelfix Self-Bunded 70,000L tank is designed to leverage the efficiencies of having large scale fuel storage capacity. Ideal for transportation depots, mining and construction on-site refuelling.
70,000L Self Bunded Fuel Tank
- 40 foot sea container footprint - easy to load, transport and unload with a side loader truck
- In-built ladder platform avoiding working at heights risks when commissioning and de-commissioning the fuel tank

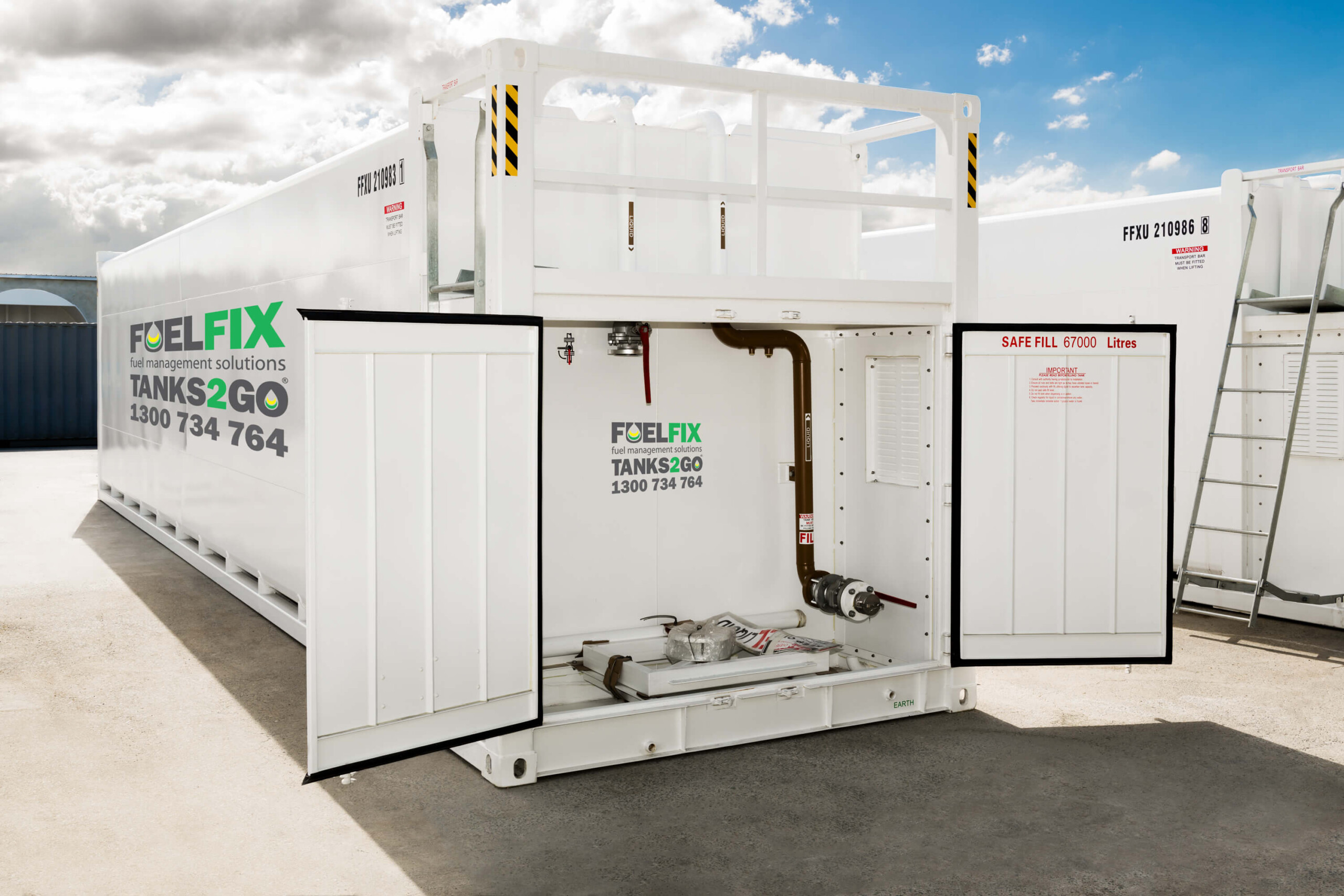

- Front mounted security doors - fully lockable container doors to keep the equipment protected from harsh environment
- Fully customisable pump bay to suit customer's requirements with solar powered options available
- Solar-powered pumping package option available, capable of dispensing over 55,000 litres per day using solar energy, with an additional backup dispensing capacity of 20,000 litres from the battery at 240 litre per minute.
Product Features
- Movable: This tank is easily transported using sideloaders, removing the need for cranes, EWP’s and any related working at height risks when loading and unloading.
- Accessible: Permanent ladder and platform complete with kickboards in accordance with AS1657. For ease of inspection and access, ladder can be fitted to either side of the tank. Undertank visibility.
- Secure and Efficient: Overfill protection supplied with mechanical shut-off alarm. Free-to-air vent weather cap. Tank floor has fall-to-front for water collection and tank-top evacuation point. Front mounted security doors with container lock handles.
- Environment-Friendly: Self-bunded double wall design and spill contained pump bay housing with removable ventilation panels. Anti-syphon valve prevents fuel loss and possible contamination should a pipe or hose fail.
- Solar-Powered Pumping Option: Roof mounted 5kW solar array coupled with a 10kwh battery to deliver a self-powered large scale fuel storage solution in a single footprint.
- Plug-and-Play: This easy to move and setup system is ideal for remote location such as mining and construction sites, requiring on-site refuelling.
Product Specification
69,400L
65,930L
Height
2,896 mm
Width
2,430 mm
Length
12,180 mm
Empty
12,750 kg
Full
69,030 kg
UL 142
ULCS601
AS1940
AS1657
AS1692
3" Male camlock coupling with dust cap fitted to tanker filling point
Wafer non-return fitted to filling line
3" fire safe ball valves
Container corner castings, primary tank access manway
Calibrated fluid level dipstick
Statutory signage and interstitial space dip point
Finished in white marine grade polyurethane paint.
HV/LV dispensing package
Single or dual vehicle pump package (light to medium vehicles)
Lubricant dispensing package
Fuelfix fuel management system

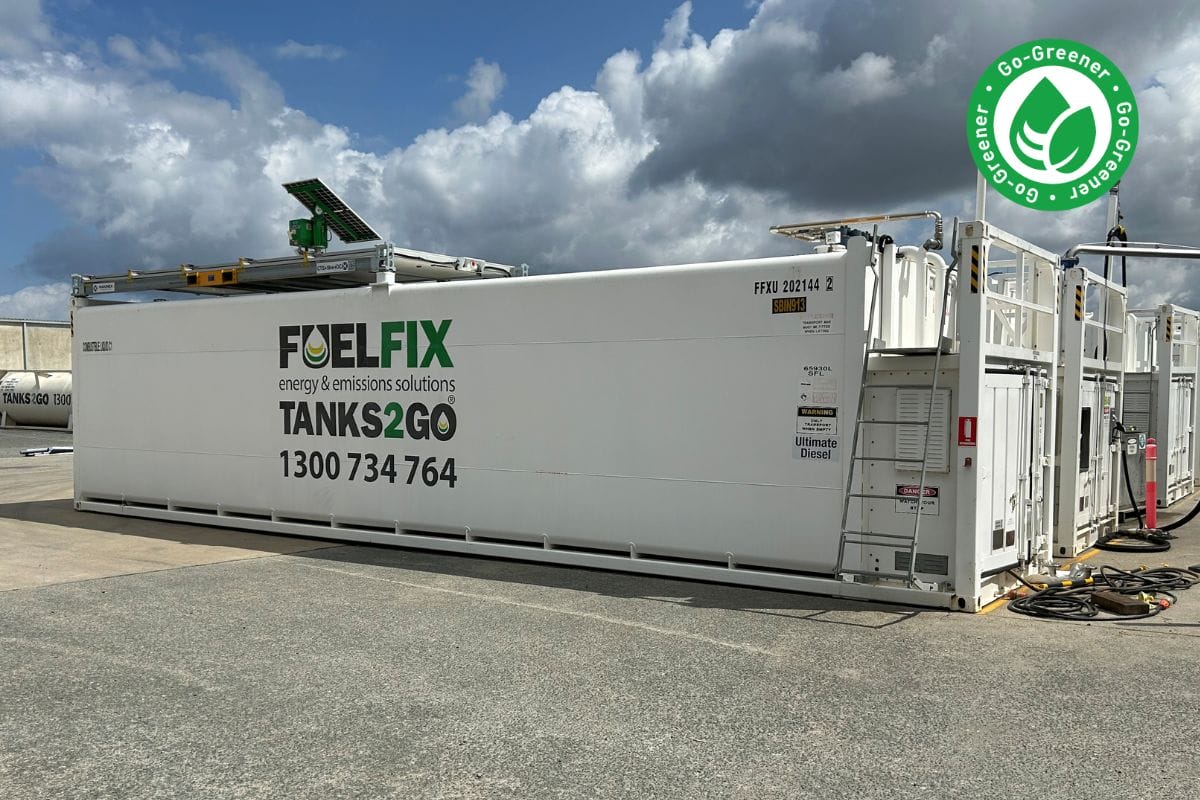

70,000L Solar-Powered Fuel Tank

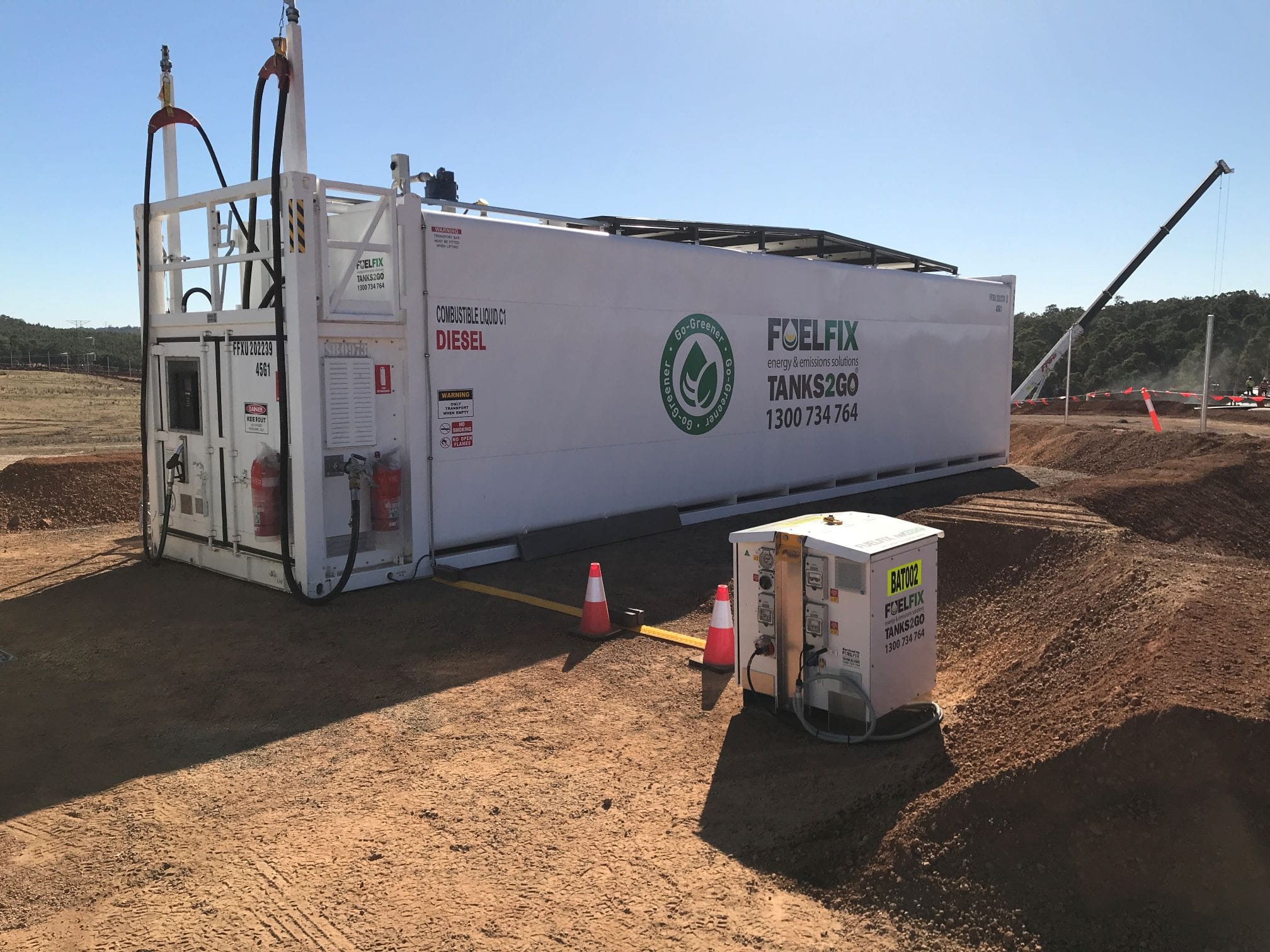

Fuelfix Self-Bunded Solar 70,000L tank couples a 5kW solar array with 10kwh battery to deliver a self-powered large scale fuel storage solution in a single footprint. This easy to move and setup system is ideal for remote location such as mining and construction sites, requiring on-site refuelling.
